Get Your Carry On
Big hauler. Small footprint. Cargowagen is stable, maneuverable, powerful, and flexible enough to carry just about anything.

Where it thrives
City streets, bike lanes and around town

What it's built for
Getting you, your kids, and/or your stuff wherever you need to go.

Highlights
- A total capacity of 200kg lets you carry 2 kids and lots of stuff with ease
- Bosch Performance Speed motor has the power to move any load, all the way to 28 mph
- 545Wh battery for plenty of range
- Shimano Deore LinkGlide 10-speed gearing for smooth, durable shifting

Easy to Ride. Easy to Love.
With a low and wide StepThru frame, low center of gravity, and stable yet agile handling, Cargowagen delivers confidence and control with even the heaviest loads. Plus, its compact dimensions make parking and storing simple and convenient. You'll actually have fun running errands.

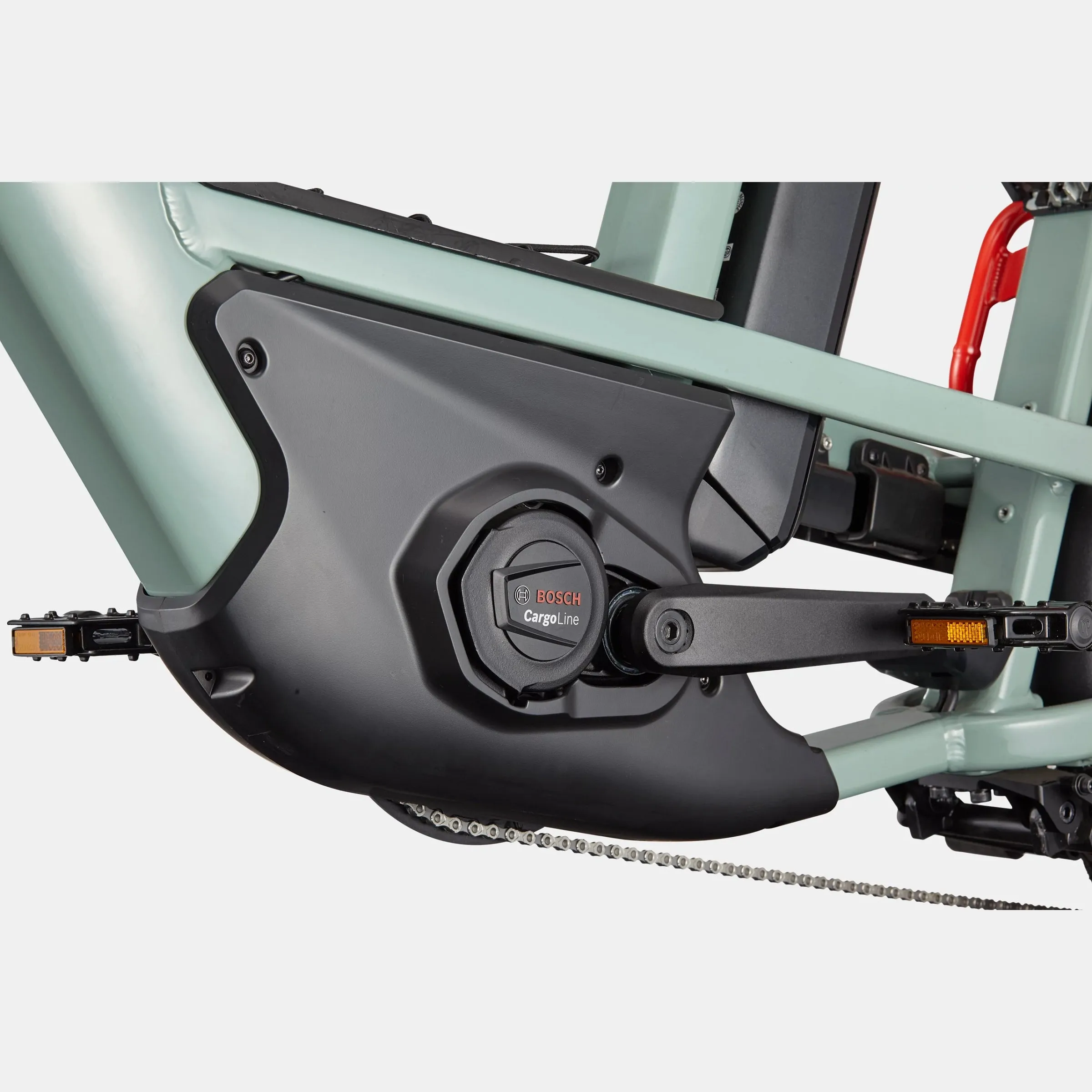

Bosch-Powered
Bosch’s e-bike technology is well-proven, which is why it powers all Cannondale e-cargo bikes. We chose drive systems specifically developed for the demands of heavy loads, with powerful battery and drive units, and space on all models for an optional second battery.

Small Wheels. Big Capability.
Cargowagen’s 20-inch wheels make life easier. Their smaller diameter makes them super durable, while allowing a lower step-over height and lower center of gravity. That means it’s easier to get on or off the bike, and gives them more stability and agility at the same time.

Packed with Practicality

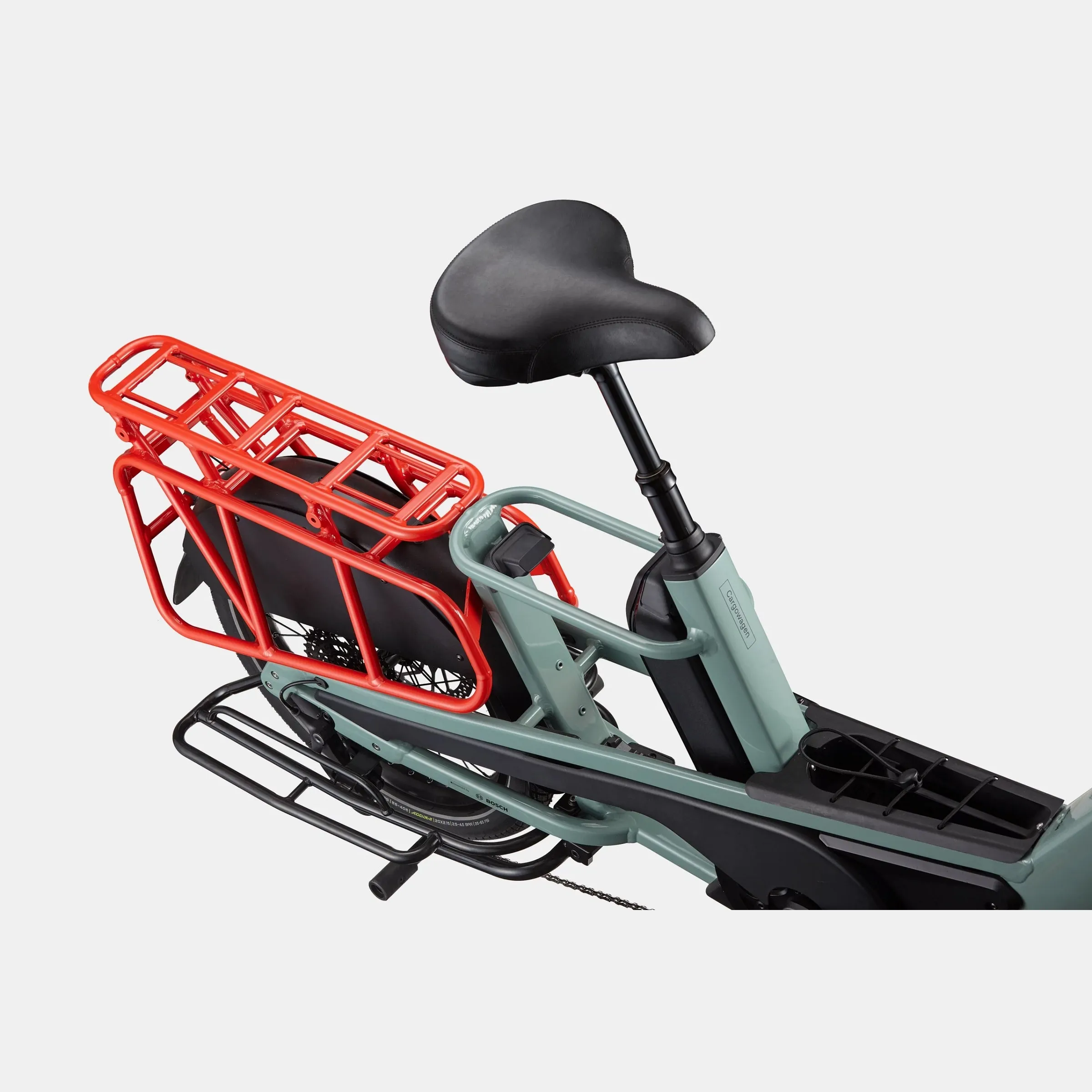

Cargowagen comes ready to tackle the to-do list: heavy duty kickstand, wheel covers, chain guard, running boards, fenders, lights, and even a lock. There are available accessories to suit your needs, too: front rack options, plus rear deck add-ons like a cushion, cargo box, and more. The trailer mounting point fits most trailer types, as well.

SPECIFCATIONS
Frameset

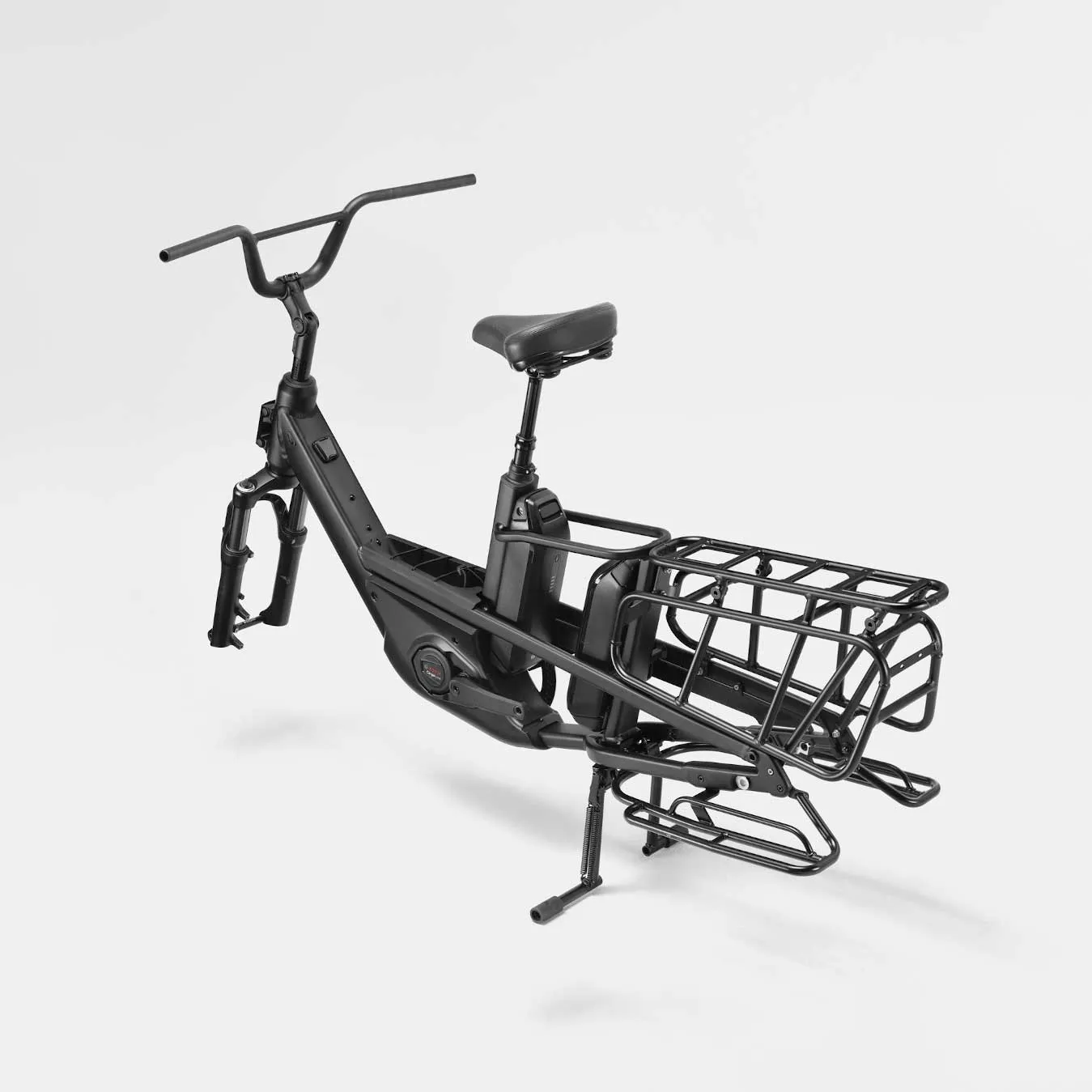

Frame - SmartForm C2 Alloy step-thru frame, integrated rear cargo rack (80kg), integrated headtube rack mounts, dual battery ready, internal cable routing, disc brake, tapered headtube, center console storage
Fork - SR Suntour Mobie 34 Cargo, BOOST DS, tapered, 80mm travel
Headset - Acros Blocklock w/ steering stop, semi-integrated

E-System
Drive Unit - Bosch Performance Speed, 28 mph
Battery - Bosch PowerPack, 545Wh
Charger - Bosch 4A

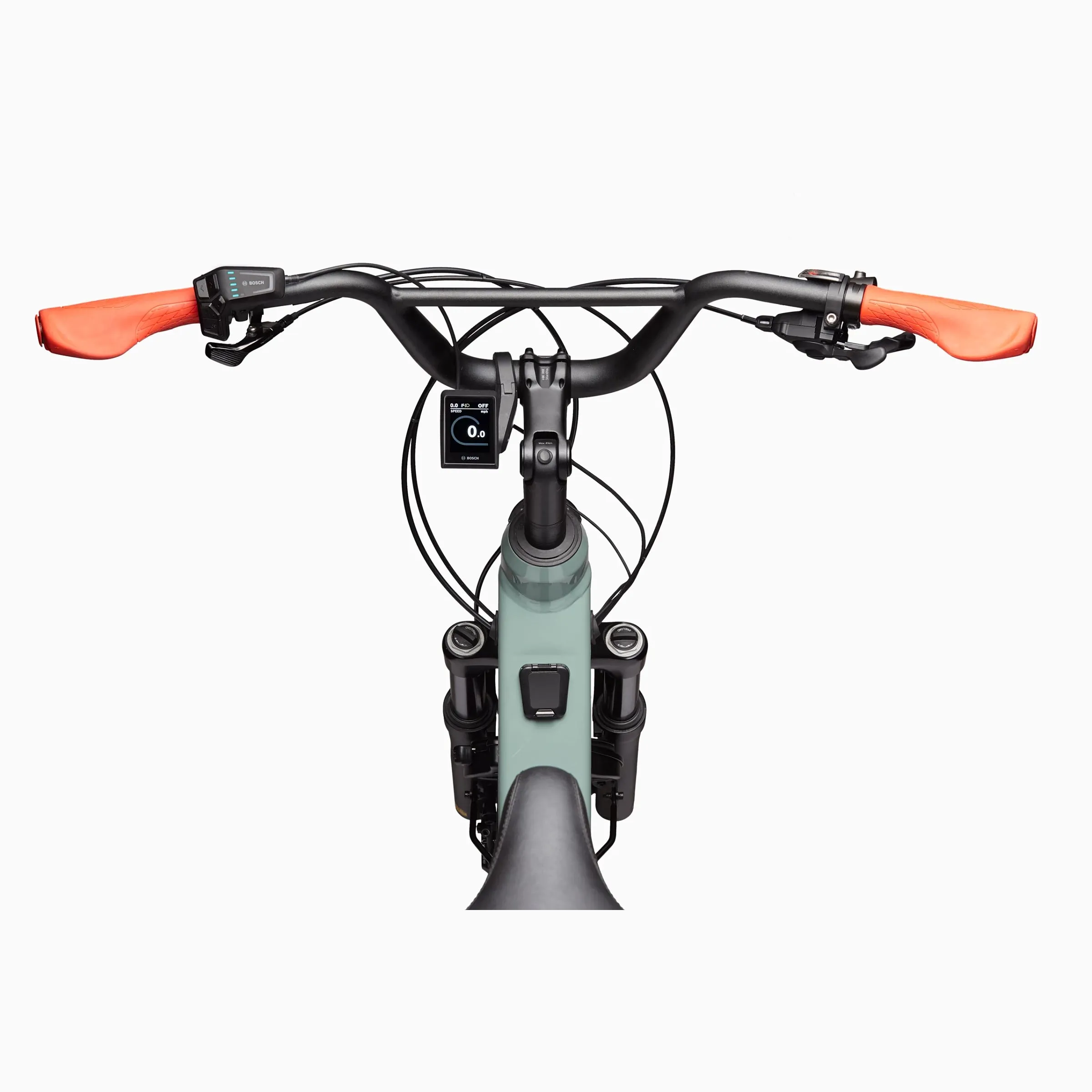

Display - Bosch Kiox 300 w/ LED Remote
Certifications - UL 2849

Drivetrain
Rear Derailleur - Shimano Deore 5130, 10-speed
Shifters - Shimano Deore, 10-speed
Chain - KMC EGlide
Crank - Samox, 52T
Cassette - Shimano CUES CS-LG300, 11-41, 10-speed

Brakes
Brakes - Tektro HD-T5040, 4-piston hydraulic disc, 203/180mm rotors
Brake Levers - Tektro HD-T5040, hydraulic disc

Wheels
Rims - Heavy Duty, Alloy, double wall, 36 hole, 35mm internal width, disc-specific
Spokes - DT Swiss Champion, 13g
Tire Size - 2.35
Wheel Size - 20
Hubs - (F) Formula, cartridge sealed bearings, 15x110mm, centerlock / (R) Formula, cartridge sealed bearings, 12x148mm, centerlock
Tires - Schwalbe Pick-Up, (F) 20x2.6" (65-406), (R) 20x2.15" (55-406)

Components
Handlebar - Cannondale Cruise Control Hi-Rise, 6061 Alloy, 31.8mm, 15° back, 740mm
Stem - Alloy, Adjustable angle, 31.8
Grips - Cannondale Ergo Lock-on
Saddle - Cannondale Comfort
Seatpost - TranzX Suspension dropper post, 31.6, 70mm drop
Extra - Cannondale heavy-duty center stand, fenders, high visibility LED headlight, Lezyne Super Bright rear light, running boards, Abus ring lock, Schwalbe Air Plus high retention inner tubes
